QECC [[27,1,9]]
This pure code is based on a linear self-orthogonal code over GF(4) with generator matrix:
[1 0 0 0 0 0 0 0 0 0 0 0 0 a^2 a a^2 a 1 0 a 1 0 0 a^2 1 a a^2]
[0 1 0 0 0 0 0 0 0 0 0 0 0 1 1 a 0 a^2 1 a^2 0 a^2 0 1 a^2 1 a^2]
[0 0 1 0 0 0 0 0 0 0 0 0 0 a^2 a a^2 a^2 a^2 1 0 a^2 0 a a^2 0 1 a^2]
[0 0 0 1 0 0 0 0 0 0 0 0 0 a^2 0 1 1 0 a^2 a^2 a 0 0 0 a a a]
[0 0 0 0 1 0 0 0 0 0 0 0 0 a^2 1 0 a^2 a a a^2 1 a 0 0 a^2 1 a^2]
[0 0 0 0 0 1 0 0 0 0 0 0 0 a a^2 a^2 a a 0 0 0 a^2 1 1 a^2 a a]
[0 0 0 0 0 0 1 0 0 0 0 0 0 a^2 0 1 a^2 a^2 1 1 1 a a a a^2 1 a]
[0 0 0 0 0 0 0 1 0 0 0 0 0 0 a^2 1 1 1 a^2 a^2 a^2 a^2 a 1 a^2 a a]
[0 0 0 0 0 0 0 0 1 0 0 0 0 a 1 a 1 0 0 0 a 0 a^2 0 1 a 1]
[0 0 0 0 0 0 0 0 0 1 0 0 0 a^2 0 a 0 1 a^2 a^2 1 a a 0 a^2 a 1]
[0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 1 a 1 a^2 1 a^2 1 a 1 0 1 1]
[0 0 0 0 0 0 0 0 0 0 0 1 0 a 1 a a 0 a 1 0 0 1 0 a 1 0]
[0 0 0 0 0 0 0 0 0 0 0 0 1 a^2 0 a a^2 a 0 1 a 1 0 a^2 0 0 1]

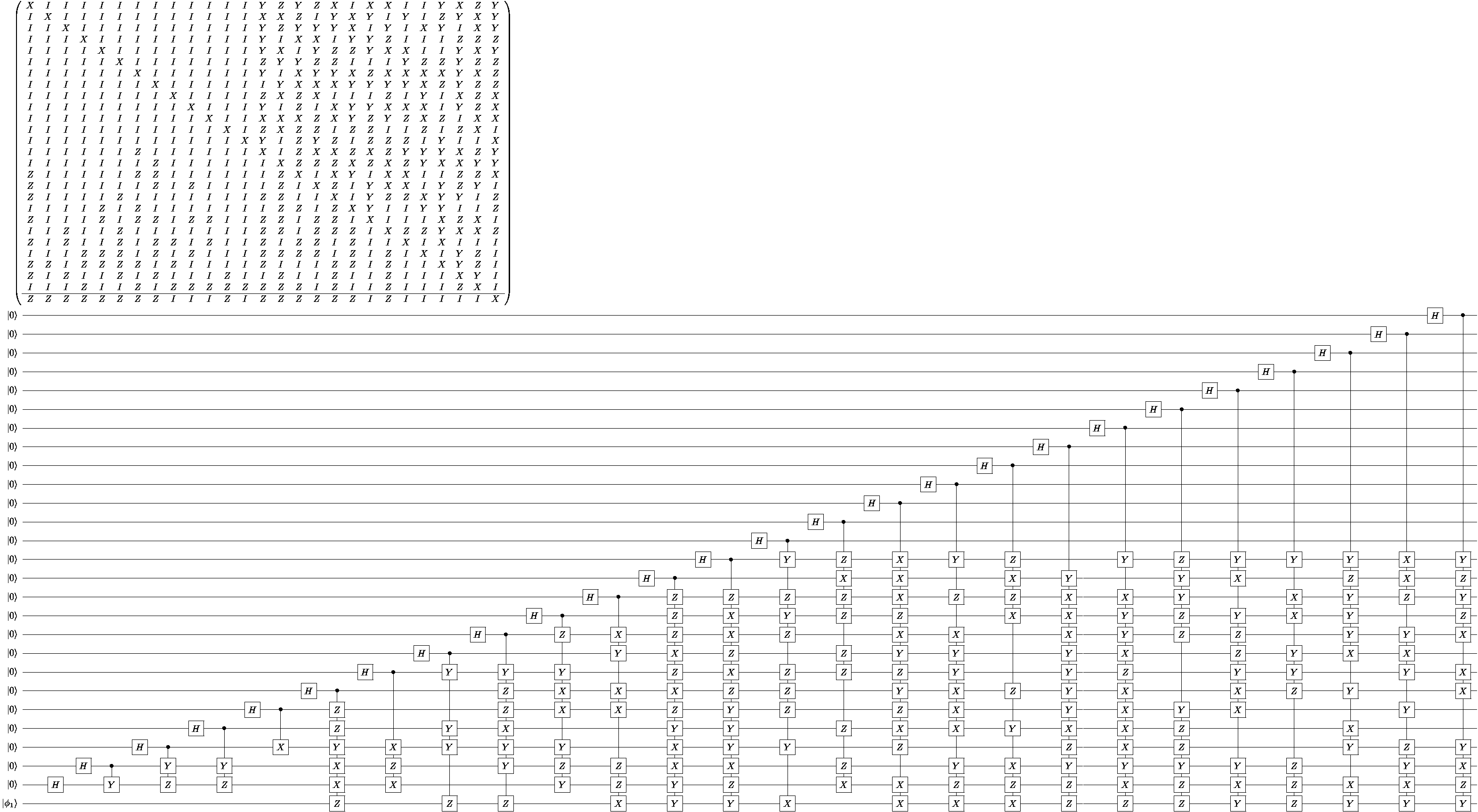

Matrix with stabilizers/seed generators and circuit for encoding:
Copyright ©
Markus Grassl
(grassl@ira.uka.de)
05.02.2003
